bless your chart - 113: Charting drives

Fetch data from cfbfastR

Code

library(cbbplotR)
library(rlang)

uga_drives <- cfbfastR::cfbd_drives(week = 8, year = 2024) |>
  dplyr::filter(game_id == "401628398") |>
  dplyr::mutate(
    available_yards = dplyr::if_else(yards < 0, 0, yards / start_yards_to_goal),
    time_seconds_elapsed = stringr::str_pad(time_seconds_elapsed, width = 2, pad = "0"),
    yds_play = round(yards / plays, 2),
    points = end_offense_score - start_offense_score,
    drive_start = start_yards_to_goal,
    drive_end = dplyr::if_else(
      offense == "Georgia" & end_yardline != 0,
      100 - end_yardline,
      end_yardline
    ),
    drive_end = dplyr::if_else(offense == "Georgia" &
                                 end_yardline == 0, 100, end_yardline)
  ) |>
  dplyr::select(
    offense,
    defense,
    drive_number,
    qrt = start_period,
    time_minutes_elapsed,
    time_seconds_elapsed,
    drive_start,
    drive_end,
    plays,
    yards,
    drive_result,
    points,
    yds_play,
    available_yards,
  ) |>
  dplyr::mutate(
    half = dplyr::case_match(qrt, 1 ~ "1st half", 2 ~ "1st half", 3 ~ "2nd half", 4 ~ "2nd half"),
    off_team = offense
  ) |>
  cbbplotR::gt_cbb_teams(offense,
                         offense,
                         logo_height = 25,
                         include_name = FALSE) |>
  dplyr::filter(half == "1st half")

# Add summary stats
summary_stats <- uga_drives |>
  dplyr::group_by(off_team, offense) |>
  dplyr::summarise(
    plays = sum(plays),
    yards = sum(yards),
    points = sum(points),
    off_drive_num = "",
    drive_start = (100 - mean(drive_start)),
    sum_minutes = sum(as.numeric(time_minutes_elapsed)),
    sum_seconds = sum(as.numeric(time_seconds_elapsed)),
    total_minutes = sum_minutes + (sum_seconds %/% 60),
    drive_result = paste0(sprintf("%.1f", sum(points) / (dplyr::n(

    ) - 1)), " ppd"),
    total_seconds = sum_seconds %% 60,
    time_clock = sprintf("%02d:%02d", total_minutes, total_seconds),
    yds_play = mean(yds_play),
    available_yards = mean(available_yards),
  ) |>
    dplyr::select(
    off_team,
    offense,
    off_drive_num,
    plays,
    yards,
    points,
    drive_start,
    time_clock,
    drive_result,
    yds_play,
    available_yards
  ) |>
  dplyr::mutate(half = "Summary")

drive_data <- uga_drives |>
  dplyr::mutate(
    qrt = factor(half, levels = c("1st half", "2nd half")),
    time_clock = paste0(time_minutes_elapsed, ":", time_seconds_elapsed)
  ) |>
  dplyr::select(offense, half, drive_number, plays, yards, points, everything()) |>
  dplyr::arrange(half, drive_number) |>
  dplyr::group_by(offense) |>
  dplyr::mutate(off_drive_num = as.character(dplyr::row_number()), ) |>
  dplyr::ungroup()


all_drive_data <- dplyr::bind_rows(drive_data, summary_stats)

GT theme: custom

Code

gt_theme_boxscore <-  function(gt_object, ...) {
  stopifnot(
    `'gt_object' must be a 'gt_tbl', have you accidentally passed raw data?` = "gt_tbl" %in%
      class(gt_object)
  )

  table_id <- subset(gt_object[["_options"]], parameter == "table_id")$value[[1]]
  data <- subset(gt_object[["_data"]])

  if (is.na(table_id)) {
    table_id <- gt::random_id()
    opt_position <- which("table_id" %in% gt_object[["_options"]][["parameter"]])[[1]]
    gt_object[["_options"]][["value"]][[opt_position]] <- table_id
  }

  table <- gt_object |>
    gt::opt_table_font(font = list(gt::google_font("News Cycle"), gt::default_fonts()),
                       weight = 500) |>
    gt::tab_style(locations = gt::cells_body(),
                  style = list(gt::cell_text(
                    font = gt::google_font("News Cycle"),
                    size = gt::px(10)
                  ))) |>
    gt::tab_style(
      locations = gt::cells_column_labels(columns = gt::everything()),
      style = list(
        gt::cell_text(
          font = gt::google_font("News Cycle"),
          weight = 650,
          size = gt::px(12),
          color = "#333333"
        )
      )
    ) |>
    gt::tab_style(
      locations = gt::cells_title("title"),
      style = gt::cell_text(
        font = gt::google_font("News Cycle"),
        weight = 650,
        size = gt::px(16),
        align = "left"
      )
    ) |>
    gt::tab_style(
      locations = gt::cells_title("subtitle"),
      style = gt::cell_text(
        font = gt::google_font("News Cycle"),
        weight = 500,
        size = gt::px(14),
        align = "left"
      )
    ) |>
    gt::tab_style(
      locations = gt::cells_column_spanners(),
      style = gt::cell_text(
        font = gt::google_font("News Cycle"),
        weight = 650,
        size = gt::px(12)
      )
    ) |>
    gt::tab_style(
      locations = gt::cells_row_groups(),
      style = list(
        gt::cell_text(
          font = gt::google_font("News Cycle"),
          weight = 650,
          size = gt::px(10),
          color = "#333333"
        ),
        gt::cell_fill(color = "#E8EBF5")
      )
    ) |>
    gt::tab_style(
      locations = gt::cells_source_notes(),
      style = gt::cell_text(
        font = gt::google_font("News Cycle"),
        size = gt::px(9.5)
      )
    ) |>
    gt::tab_style(
      locations = gt::cells_row_groups(),
      style = gt::cell_text(
        weight = "bold",
        font = gt::google_font("News Cycle"),
        size = gt::px(12)
      )
    ) |>
    # footnote
    gt::tab_style(
      locations = gt::cells_footnotes(),
      style = gt::cell_text(
        font = gt::google_font("News Cycle"),
        size = gt::px(9.5)
      )
    ) |>
    gt::tab_style(
      locations = gt::cells_body(rows = 1:(nrow(data) - 1)),
      style = gt::cell_borders(
        sides = "bottom",
        color = "#000000",
        weight = gt::px(1)
      )
    ) |>
    gt::tab_options(
      data_row.padding = 2,
      table_body.hlines.color = "transparent",
      column_labels.border.top.style = "none",
      column_labels.border.bottom.style = "none",
      row_group.border.top.style = "none",
      row_group.border.top.color = "black",
      row_group.border.bottom.width = gt::px(1),
      row_group.border.bottom.color = "black",
      row_group.border.bottom.style = "solid",
      row_group.padding = gt::px(1.5),
      heading.align = "center",
      heading.border.bottom.style = "none",
      table_body.border.top.style = "none",
      table_body.border.bottom.color = "white",
      table.border.bottom.style = "none",
      table.border.top.style = "none",
      source_notes.border.lr.style = "none"
    )
  return(table)
}

Make stacked GT table for drive chart

Code

all_drive_data |>
  dplyr::filter(off_team == "Georgia") |>
  dplyr::relocate(drive_start, .before = plays) |>
  dplyr::relocate(off_drive_num, .before = drive_start) |>
  dplyr::relocate(time_clock, .before = points) |>
  gt::gt(
    groupname_col = c("offense"),
    process_md = TRUE,
    row_group_as_column = FALSE,
  ) |>
  gt::fmt_markdown(offense) |>
  gt::cols_hide(
    columns = c(
      off_team,
      drive_number,
      defense,
      drive_end,
      qrt,
      half,
      time_minutes_elapsed,
      time_seconds_elapsed
    )
  ) |>
  gt::fmt_number(columns = c(yds_play), decimals = 1) |>
  gt::fmt_number(columns = c(drive_start), decimals = 0) |>
  gt_theme_boxscore() |>
  gt::cols_label(
    offense = "",
    off_drive_num = "",
    drive_start = "Start",
    plays = "Plays",
    yards = "Yards",
    points = "Points",
    time_clock = "Time",
    drive_result = "Pts/Drive",
    yds_play = "Yds/Play",
    available_yards = "Yds/Pct"
  ) |>
  gtExtras::gt_add_divider(columns = drive_result,
                           sides = "left",
                           color = "black") |>
  gt::fmt_percent(available_yards, decimals = 1) |>
  gt::tab_style(
    style = list(gt::cell_text(weight = "bold")),
    locations = gt::cells_body(
      columns = c(
        plays,
        yards,
        points,
        time_clock,
        drive_start,
        yds_play,
        available_yards,
        drive_result,
        drive_number
      ),
      rows = qrt == "Summary"
    )
  ) |>
  gtExtras::gt_highlight_rows(rows = half == "Summary", fill = "#fffec8") |>
  gtUtils::gt_border_grid(color = "black",
                          weight = 0.5,
                          include_labels = FALSE) |>
  gt::cols_align(offense, align = "left") |>
  gt::tab_style(
    style = list(gt::cell_text(weight = "bold")),
    locations = gt::cells_body(columns = available_yards, rows = available_yards == 1)
  ) |>
  gt::tab_style(
    style = list(gt::cell_text(weight = "bold")),
    locations = gt::cells_body(
      columns = drive_result,
      rows = drive_result %in% c("TD", "FG", "FUMBLE", "INT", "INT RETURN")
    )
  ) |>
  gt::tab_header(title = "Georgia dominates Texas in 1st half: 23-0",
                 subtitle = "1st half drive chart. Final score: UGA 30, Texas 15") |>
  gt::tab_options(table.width = gt::px(400)) -> gt_dc_tab_1

all_drive_data |>
  dplyr::filter(off_team == "Texas") |>
  dplyr::relocate(drive_start, .before = plays) |>
  dplyr::relocate(off_drive_num, .before = drive_start) |>
  dplyr::relocate(time_clock, .before = points) |>
  gt::gt(
    groupname_col = c("offense"),
    process_md = TRUE,
    row_group_as_column = FALSE,
  ) |>
  gt::fmt_markdown(offense) |>
  gt::cols_hide(
    columns = c(
      off_team,
      drive_number,
      defense,
      drive_end,
      qrt,
      half,
      time_minutes_elapsed,
      time_seconds_elapsed
    )
  ) |>
  gt::fmt_number(columns = c(yds_play), decimals = 1) |>
  gt::fmt_number(columns = c(drive_start), decimals = 0) |>
  gt_theme_boxscore() |>
  gt::cols_label(
    offense = "",
    off_drive_num = "",
    drive_start = "Start",
    plays = "Plays",
    yards = "Yards",
    points = "Points",
    time_clock = "Time",
    drive_result = "Pts/Drive",
    yds_play = "Yds/Play",
    available_yards = "Yds/Pct"
  ) |>
  gtExtras::gt_add_divider(columns = drive_result,
                           sides = "left",
                           color = "black") |>
  gt::fmt_percent(available_yards, decimals = 1) |>
  gt::tab_style(
    style = list(gt::cell_text(weight = "bold")),
    locations = gt::cells_body(
      columns = c(
        plays,
        yards,
        points,
        time_clock,
        drive_start,
        yds_play,
        available_yards,
        drive_result,
        drive_number
      ),
      rows = qrt == "Summary"
    )
  ) |>
  gtExtras::gt_highlight_rows(rows = half == "Summary", fill = "#fffec8") |>
  gtUtils::gt_border_grid(color = "black",
                          weight = 0.5,
                          include_labels = FALSE) |>
  gt::cols_align(offense, align = "left") |>
  gt::tab_style(
    style = list(gt::cell_text(weight = "bold")),
    locations = gt::cells_body(columns = available_yards, rows = available_yards == 1)
  ) |>
  gt::tab_style(
    style = list(gt::cell_text(weight = "bold")),
    locations = gt::cells_body(
      columns = drive_result,
      rows = drive_result %in% c("TD", "FG", "FUMBLE", "INT", "INT RETURN")
    )
  ) |>
  gtUtils::gt_538_caption(
    top_caption = "Points per drive (ppd) based on drive results. Available yards using the start as the
  distance to the goal. Summary stats shows average start, yds/play, and available yards percentage.",
    bottom_caption = "Data via {cfbfastR}, built with {gtUtils} | Table by Chris at Bless your chart"
  ) |>
  gt::tab_options(table.width = gt::px(400))  -> gt_dc_tab_2

gtUtils::gt_stack_tables(list(gt_dc_tab_1, gt_dc_tab_2)) -> tabs

gtUtils::gt_save_crop(tabs,
                      file = "drive_table.png",
                      whitespace = 40,
                      bg = "white")

tabs

Georgia dominates Texas in 1st half: 23-0
1st half drive chart. Final score: UGA 30, Texas 15
	Start	Plays	Yards	Time	Points	Pts/Drive	Yds/Play	Yds/Pct

1	75	3	4	1:00	0	PUNT	1.3	5.3%
2	83	2	6	0:48	0	INT	3.0	7.2%
3	80	9	62	4:45	0	INT	6.9	77.5%
4	13	4	13	1:36	7	TD	3.2	100.0%
5	28	7	13	2:43	3	FG	1.9	46.4%
6	34	3	34	1:29	7	TD	11.3	100.0%
7	55	7	25	1:51	3	FG	3.6	45.5%
8	80	3	9	1:12	0	PUNT	3.0	11.2%
9	30	4	4	0:25	3	END OF HALF	1.0	13.3%
	47	42	170	15:49	23	2.9 ppd	3.9	45.2%

¹	Start¹	Plays¹	Yards¹	Time¹	Points¹	Pts/Drive¹	Yds/Play¹	Yds/Pct¹

1	87	7	26	3:21	0	PUNT	3.7	29.9%
2	42	3	1	1:32	0	PUNT	0.3	2.4%
3	95	4	8	1:52	0	FUMBLE	2.0	8.4%
4	92	3	-7	1:37	0	PUNT	−2.3	0.0%
5	75	3	5	0:47	0	INT	1.7	6.7%
6	75	3	-4	1:56	0	PUNT	−1.3	0.0%
7	75	6	23	1:48	0	PUNT	3.8	30.7%
8	80	5	10	1:18	0	FUMBLE	2.0	12.5%
	22	34	62	14:11	0	0.0 ppd	1.2	11.3%
Data via {cfbfastR}, built with {gtUtils} \| Table by Chris at Bless your chart
¹ Points per drive (ppd) based on drive results. Available yards using the start as the distance to the goal. Summary stats shows average start, yds/play, and available yards percentage.

Load USC drive

Code

# make data based off play-by-play
# https://www.espn.com/college-football/playbyplay/_/gameId/401628521
usc_drives <- tibble::tribble(
  ~team_name, ~drive_num, ~plays, ~yards, ~start_yd, ~end_yd, ~result,
  "Maryland",1,9,30,97,67,"DOWNS",
  "USC",4,4,9,33,24,"BLOCKED FG",
  "Maryland",7,5,47,53,0,"TOUCHDOWN"
)  |>
  dplyr::mutate(start_yd = dplyr::if_else(
                team_name == "Maryland", 100-start_yd,
                start_yd
              ),
              end_yd = dplyr::if_else(
                team_name == "Maryland", 100-end_yd,
                end_yd
              ))

Custom ggplot2 theme

Code

theme_me <- function() {
  # Create a base theme with minimal style
  base_theme <- ggplot2::theme_minimal(base_size = 10, base_family = "RobotoCondensed-Regular")

  # Customize the base theme with additional modifications
  custom_theme <- base_theme +
    ggplot2::theme(
      plot.title = ggplot2::element_text(
        hjust = 0.5,
        size = 24,
        face = "bold"
      ),
      plot.subtitle = ggplot2::element_text(
        hjust = 0.5,
        size = 10,
        lineheight = 0.25,
        vjust = -0.5
      ),
      plot.caption = ggplot2::element_text(
        hjust = 1,
        size = 6,
        lineheight = 0.35,
        margin = ggplot2::margin(t = 20)
      ),
      panel.grid.minor = ggplot2::element_line(color = "gray", linetype = "dotted"),  # Customize minor grid lines
      plot.background = ggplot2::element_rect(fill = "floralwhite", color = "floralwhite")
    )

  return(custom_theme)
}

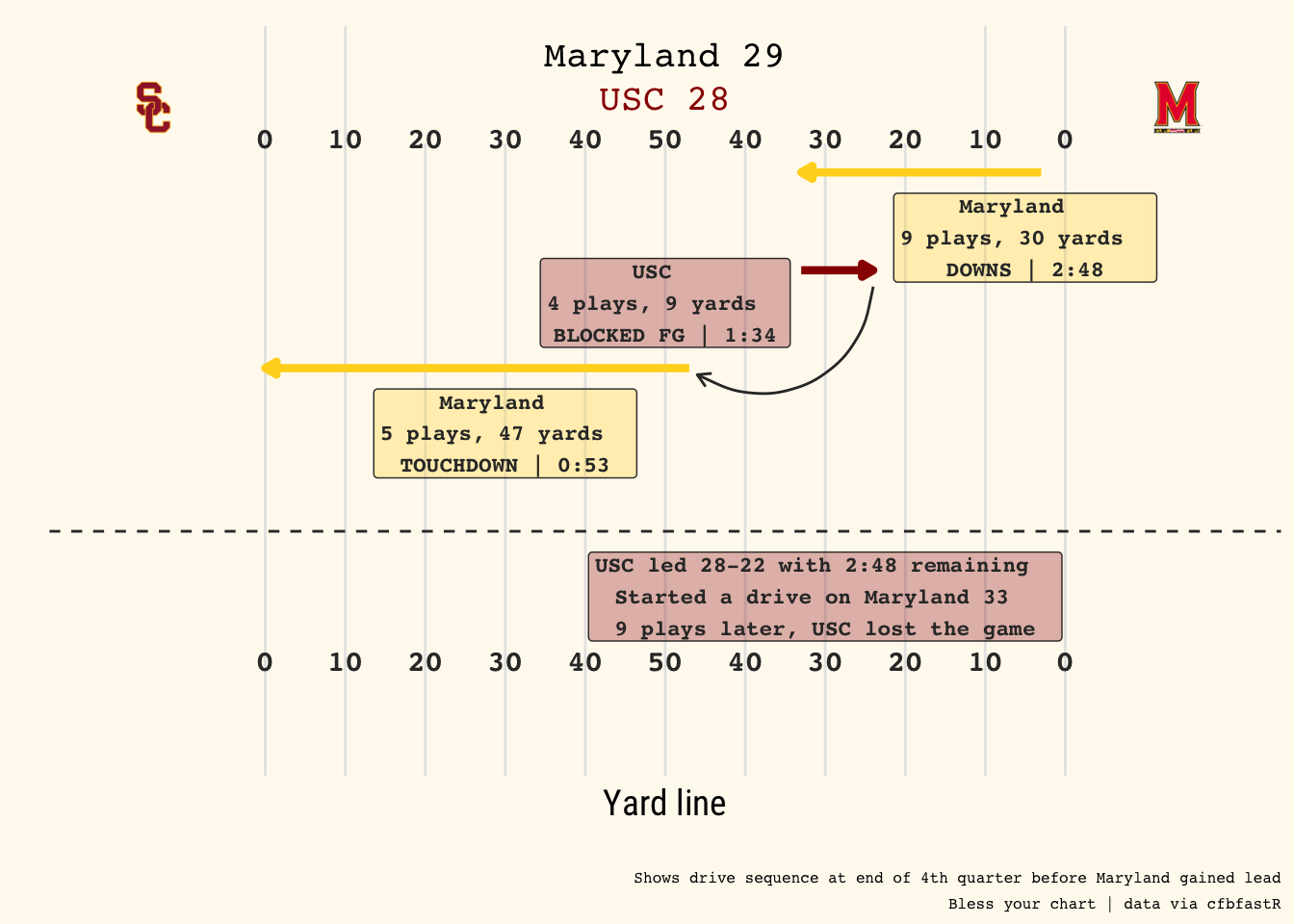

Make USC plot

Code

# set colors
terps_color <- "#FFD520"
usc_color <- "#990000"

# set titles
usc_scoring_title <- "<span style='font-family: mono; fontface: bolder'><span style='color:#000000'>Maryland 29</span><br>
<span style='color:#990000;'>USC 28</span>"

caption <- "<span style='font-family: mono; fontface: bold'> Shows drive sequence at end of 4th quarter before Maryland gained lead<br><br>
Bless your chart | data via cfbfastR</span>"

usc_drive_colors <- c("Maryland" = terps_color, "USC" = usc_color)

usc_drive_plot <- ggplot2::ggplot(usc_drives) +
  ggplot2::geom_segment(
    ggplot2::aes(
      x = drive_num,
      xend = drive_num,
      y = start_yd,
      yend = end_yd,
      color = team_name
    ),
    size = 1.5,
    arrow = ggplot2::arrow(type = "closed", length = ggplot2::unit(0.07, "inches"))
  ) +
  ggplot2::scale_y_reverse(
    limits = c(120, -20),
    breaks = seq(-20, 120, 10),
    labels = rev(
      c(
        "",
        "",
        "0",
        "10",
        "20",
        "30",
        "40",
        "50",
        "40",
        "30",
        "20",
        "10",
        "0",
        "",
        ""
      )
    )
  ) +
  ggplot2::scale_x_reverse(
    limits = c(20, -4),
    breaks = seq(20, -4, -1),
    expand = c(0, -0.5)
  ) +
  ggplot2::coord_flip() +
  ggplot2::scale_color_manual(values = usc_drive_colors) +
  theme_me() +
  ggplot2::theme(
    legend.position = "none",
    plot.title = ggtext::element_markdown(),
    plot.caption = ggtext::element_markdown(),
    panel.grid.major.x = ggplot2::element_line(color = "#E6E6E6", size = 0.5),
    panel.grid.minor.x = ggplot2::element_blank(),
    panel.grid.major.y = ggplot2::element_blank(),
    panel.grid.minor.y = ggplot2::element_blank(),
    axis.text.y = ggplot2::element_blank(),
    axis.text.x = ggplot2::element_blank(),
    axis.title.x = ggplot2::element_text(size = 14, face = "bold")
  ) +
  ggplot2::geom_hline(yintercept = c(-10, -20, 110, 120), color = "floral white") +
  ggplot2::geom_vline(xintercept = 12,
                      color = "#333333",
                      linetype = "dashed") +
  ggplot2::labs(
    x = "",
    y = "Yard line",
    title = "",
    caption = caption
  ) +
  ggtext::geom_richtext(
    x = 1.8,
    y = -50,
    label = usc_scoring_title,
    fill = "floral white",
    label.color = NA,
    size = 5,
    label.padding = ggplot2::unit(c(0.7, 4.5, 0.7, 4.5), "lines")
  ) +
  ggplot2::annotate(
    geom = "text",
    x = 0,
    y = c(100, 90, 80, 70, 60, 50, 40, 30, 20, 10, 0),
    label =  c("0", "10", "20", "30", "40", "50", "40", "30", "20", "10", "0"),
    color = "#333333",
    size = 4,
    fontface = 'bold',
    family = 'mono',
    hjust = 0.5
  ) +
  ggplot2::annotate(
    geom = "text",
    x = 16,
    y = c(100, 90, 80, 70, 60, 50, 40, 30, 20, 10, 0),
    label =  c("0", "10", "20", "30", "40", "50", "40", "30", "20", "10", "0"),
    color = "#333333",
    size = 4,
    fontface = 'bold',
    family = 'mono',
    hjust = 0.5
  )   +
  ggplot2::annotate(
    geom = "label",
    x = 3,
    y = 5,
    label =  "Maryland  \n9 plays, 30 yards  \nDOWNS | 2:48",
    color = "#333333",
    fill = terps_color,
    size = 3,
    fontface = 'bold',
    family = 'mono',
    alpha = .3,
    hjust = 0.5
  ) +
  ggplot2::annotate(
    geom = "label",
    x = 5,
    y = 50,
    label =  "USC  \n4 plays, 9 yards  \nBLOCKED FG | 1:34",
    color = "#333333",
    fill = usc_color,
    size = 3,
    fontface = 'bold',
    family = 'mono',
    alpha = .3,
    hjust = 0.5
  ) +
  ggplot2::annotate(
    geom = "curve",
    color = "#333333",
    x = 4.5,
    y = 24,
    xend = 7.2,
    yend = 46,
    curvature = -.6,
    arrow = ggplot2::arrow(length = ggplot2::unit(2, "mm"), )
  ) +
  ggplot2::annotate(
    geom = "label",
    x = 14,
    y = 30,
    label =  "USC led 28-22 with 2:48 remaining  \nStarted a drive on Maryland 33  \n9 plays later, USC lost the game",
    fill = usc_color,
    color = "#333333",
    size = 3,
    fontface = 'bold',
    family = 'mono',
    alpha = .3,
    hjust = 0.5
  ) +
  ggplot2::annotate(
    geom = "label",
    x = 9,
    y = 70,
    label =  "Maryland  \n5 plays, 47 yards  \nTOUCHDOWN | 0:53",
    color = "#333333",
    fill = terps_color,
    size = 3,
    fontface = 'bold',
    family = 'mono',
    alpha = .3,
    hjust = 0.5
  ) +
  ggplot2::annotate(
    cfbplotR::GeomCFBlogo,
    x = -1,
    y = 114,
    team = "USC",
    height = .075,
  ) +
  ggplot2::annotate(
    cfbplotR::GeomCFBlogo,
    x = -1,
    y = -14,
    team = "Maryland",
    height = .075,
  )


ggplot2::ggsave(
  "usc_drive_plot.png",
  usc_drive_plot,
  h = 6.85,
  w = 6.85,
  dpi = 600,
  type = 'cairo'
)

usc_drive_plot
